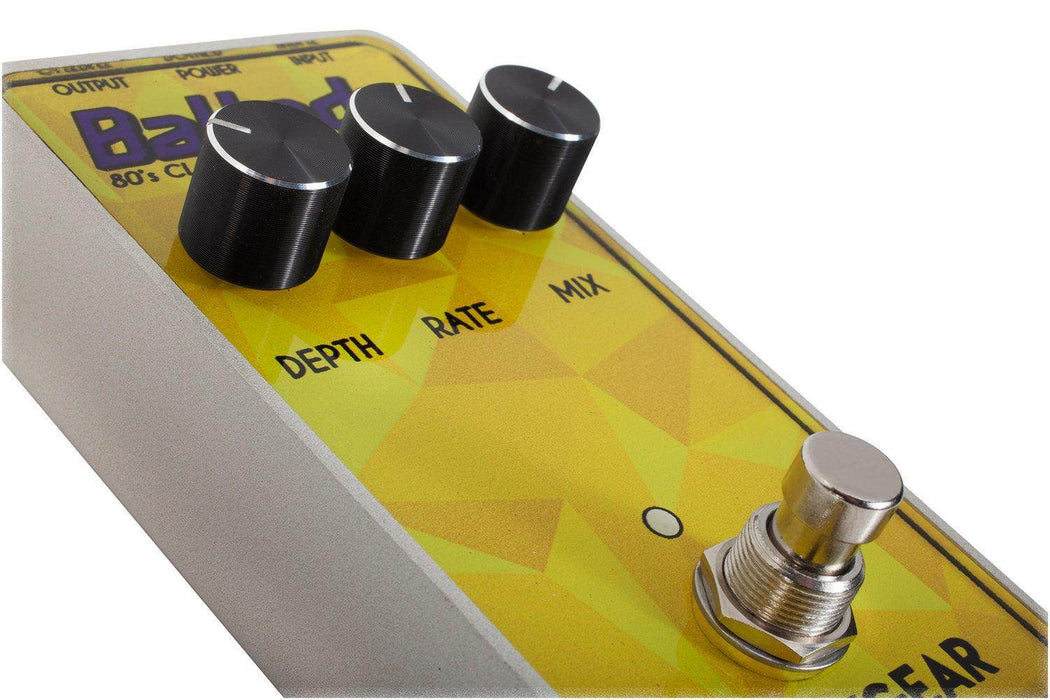

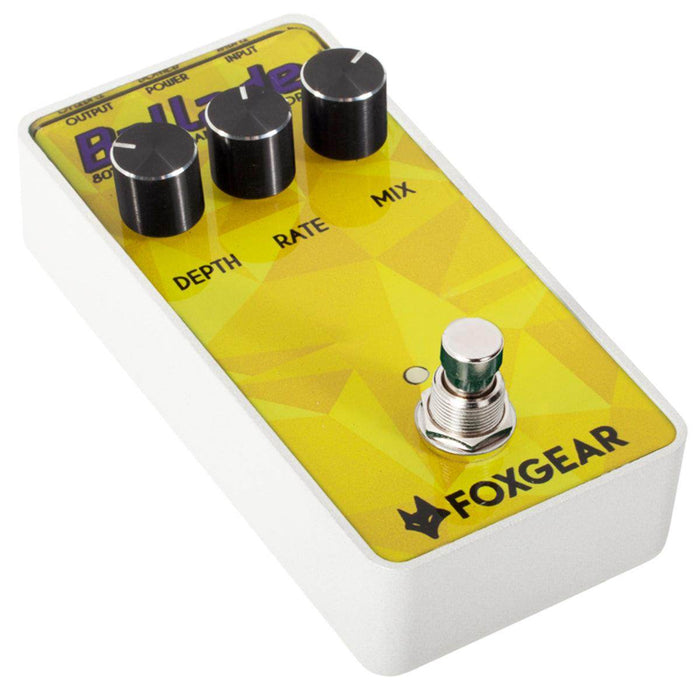

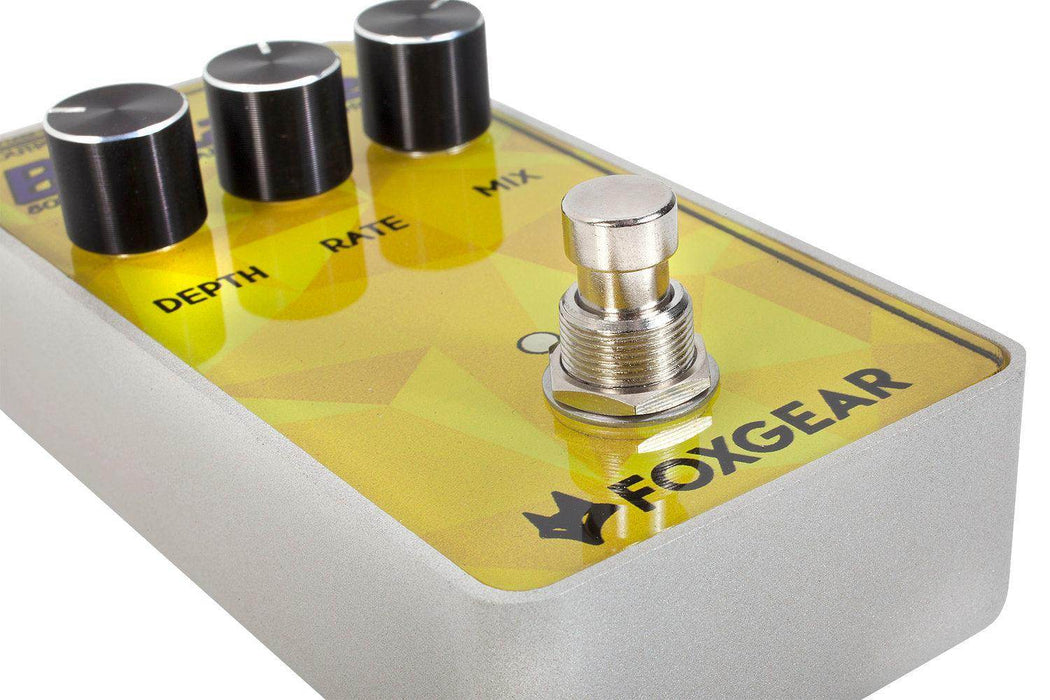

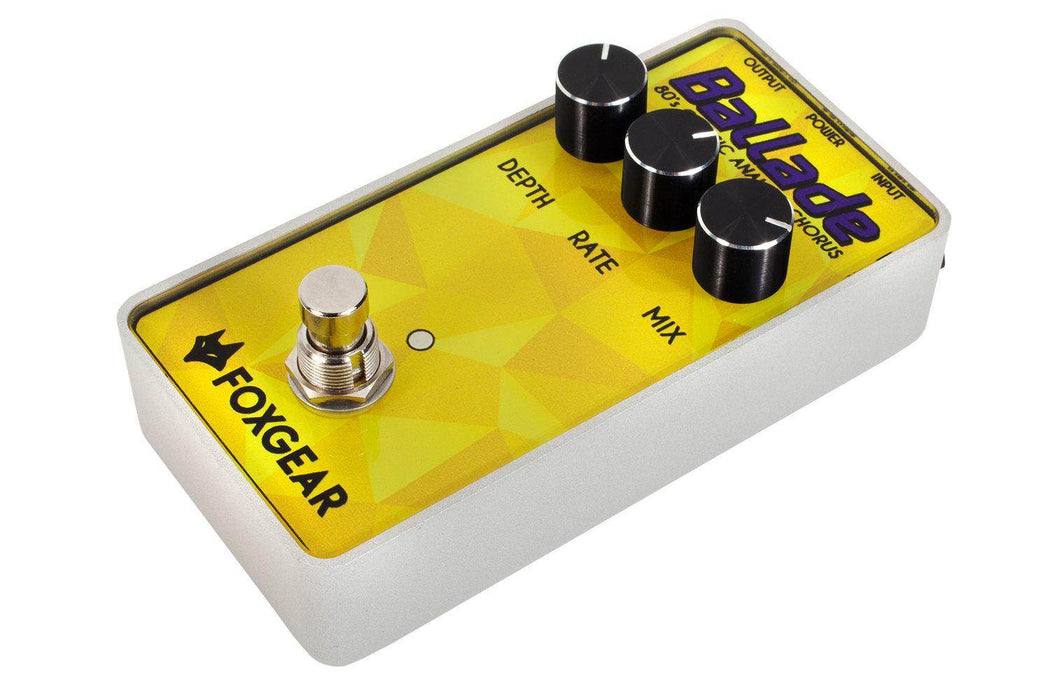

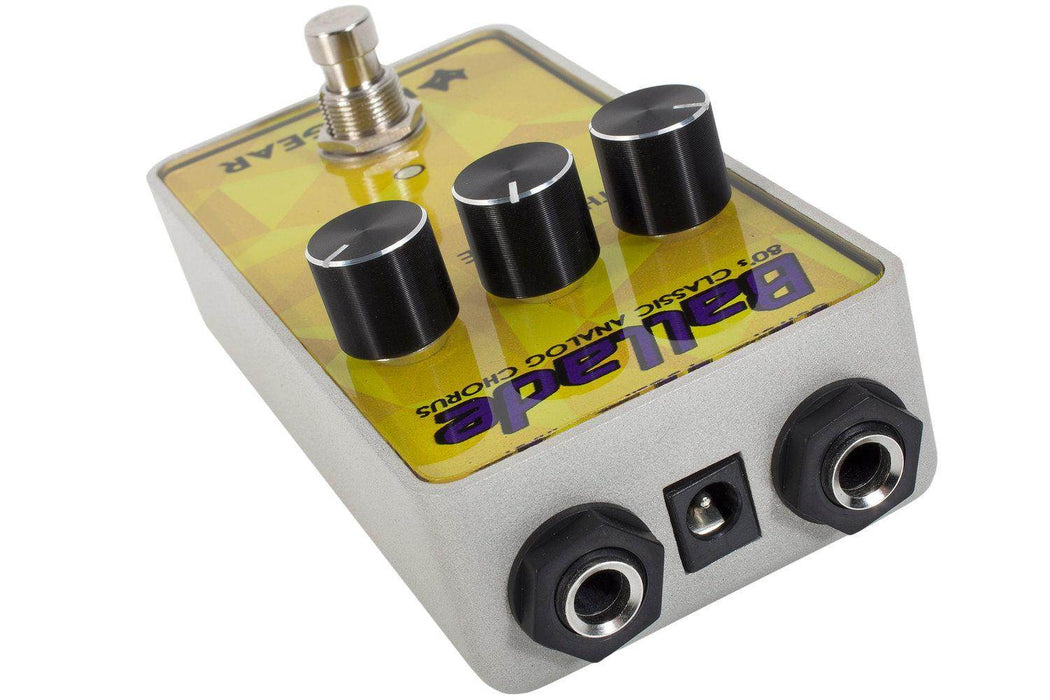

Foxgear BALLADE (80’s Classic Analog Chorus)

Starting with an idea to hold true to the sound made famous by great units like the Boss CE-1 and CE-2, we kept the circuit totally analog and worked to design the unit to be super quiet, to not reduce signal in any frequency, and to have a better response in the Low frequency range making it exceptional for bass also.

As with all other Foxgear pedals, the Ballade has Standard Audio-grade components in the audio path, (no SMD) and it is equipped with our own anti-pop relay assisted true bypass circuitry.

General Details
Power In: 9 to 12VDC (negative TIP)
Consumption at 9V: <100mA
Input Impedance: <=1M Ohm
Output Impedance: <=10K Ohm
Width: 60mm. (2,3”)
Length: 120mm. (4,7”)
Height: 30mm. (1,1”)
Weight: 0,2Kg. (0,4lbs)
